EMBEDDED and POWER SYSTEMS

Model  -  MP3

• Battery Voltage - 12VDC
• Float Voltage - 13.5- 13.8VDC
• Boost Voltage - 14.4 - 14.7VDC   Rated Current - 3A
• Trickle   current - 100mA - 1 A   Current Range - 0 ~ 3A
• Rated Power - 45W
• Voltage Range - 190~265VAC   Efficiency - >96%
• I/P reverse   polarity - YES
• Working Temp. - 85DegC
• Enclosure  - ABS (Plastic)
• Cooling - NATURAL
• Dimension   - (L*W*H) 110x78x62 MM   Weight - 320g. Approx.
• Display - Voltage / Current
• LEDS - FULL / CHARGING

PRICE  -  1140.00 ONLY

Model - T1.5A

• Battery Voltage - 12VDC
• Float Voltage - 13.5- 13.8VDC
• Boost Voltage - 14.4 - 14.7VDC
• Rated Current - 1.5A
• Trickle current - 100mA - 600 mA
• Current Range - 0 ~ 1.5A
• Rated Power - 25W
• Voltage Range - 180~270VAC
• Efficiency - >94%
• I/P reverse polarity - YES
• Working Temp.  - 85DegC
• Enclosure  - ABS Plastic
• Cooling - NATURAL
• Dimension (L*W*H) - 97x47x43 MM
• Weight - 250g. Approx.
• Display - Voltage
• LEDS - FULL / CHARGING / ERROR

Model - Digi-2A

• Battery Voltage - 12VDC
• Float Voltage - 13.5- 13.8VDC
• Boost Voltage - 14.4 - 14.7VDC
• Rated Current - 2A
• Trickle current - 100mA - 600 mA
• Current Range - 0 ~ 2A
• Rated Power - 30W
• Voltage Range - 180~270VAC
• Efficiency - >94%
• I/P reverse polarity - YES
• Working Temp.  - 85DegC
• Enclosure  - ABS Plastic
• Cooling - NATURAL
• Dimension (L*W*H) - 97x47x43 MM
• Weight - 250g. Approx.
• Display - Voltage
• LEDS - FULL / CHARGING / ERROR

Model - FCBC-6A

• Battery Voltage - 12VDC
• Float Voltage - 13.4- 13.5VDC
• Boost Voltage - 14.3 - 14.5VDC
• Rated Current - 6A
• Trickle current - 100mA - 1 A
• Current Range - 0 ~ 6A
• Rated Power - 90W
• Voltage Range - 190~265VAC
• Efficiency - >96%
• I/P reverse polarity - Provided by internal Relay
• Working Temp. -  85DegC
• Enclosure  - Metal
• Cooling - Forced Cooling . Fan with on off control
• Dimension (L*W*H) - 155x85x95 MM
• Weight - 800g. Appr

Model - FCBC10A

• Battery Voltage - 12VDC
• Float Voltage - 13.4- 13.5VDC
• Boost Voltage - 14.3 - 14.5VDC
• Rated Current - 10A
• Trickle current - 100mA - 1 A
• Current Range - 0 ~ 10A
• Rated Power - 150W
• Voltage Range - 190~265VAC
• Efficiency - >96%
• I/P reverse polarity - Provided by internal Relay
• Working Temp. -  85DegC
• Enclosure  - Metal
• Cooling - Forced Cooling . Fan with on off control
• Dimension (L*W*H) - 155x85x95 MM
• Weight - 800g. Appr

Model - FCBC12V/3-6A

• Battery Voltage - 12VDC
• Float Voltage - 13.4- 13.5VDC
• Boost Voltage - 14.3 - 14.5VDC
• Rated Current - 6A
• Trickle current - 100mA - 1 A
• Current Range - 3A / 6A
• Rated Power - 90W
• Voltage Range - 190~265VAC
• Efficiency - >96%
• I/P reverse polarity - Provided by internal Relay
• Working Temp.  - 85DegC
• Enclosure  - Metal
• Cooling - Forced Cooling . Fan with on off control
• Dimension (L*W*H) - 155x85x95 MM
• Weight - 800g. Approx.

Model - UniCharge

• Battery Voltage - 12VDC
• Float Voltage - 13.4- 13.5VDC
• Boost Voltage - 14.3 - 14.5VDC
• Rated Current - 6A
• Trickle current - 100mA - 1 A
• Current Range - 3A / 6A / 8A
• Rated Power - 140W
• Voltage Range - 190~265VAC
• Efficiency - >96%
• I/P reverse polarity - Provided by internal Relay
• Working Temp.  - 85DegC
• Enclosure  - Metal
• Cooling - Forced Cooling . Fan with on off control
• Dimension (L*W*H) - 155x85x95 MM
• Weight - 800g. Approx.

Model - FCBC12V15A

• Battery Voltage - 12VDC
• Float Voltage - 13.4- 13.5VDC
• Boost Voltage - 14.3 - 14.5VDC
• Rated Current - 15A
• Trickle current - 500mA - 1 A
• Current Range - 0 ~ 15A
• Rated Power - 230W
• Voltage Range - 190~265VAC
• Efficiency - >96%
• I/P reverse polarity - Provided by internal Relay
• Working Temp.  - 85DegC
• Enclosure  - Metal
• Cooling - Forced Cooling . Fan with on off control
• Dimension (L*W*H) - 155x85x95 MM
• Weight - 800g. Approx.

Model - E-Bike 48V/3A

• Model-E-Bike 48V 3Amp
• Battery Voltage-48V
• Float Voltage-55.5 -  56.0 VDC
• Boost Voltage-58.0 - 58.5 VDC
• Rated Current-3A
• Trickle  current-100mA - 1 A
• O/P Current Range-0 ~ 3A
• Rated Power-190W
• I/P Voltage  Range-190~265VAC Efficiency->96%
• Output Connector-T - Type Connector  Working Temp.- 85DegC
• Enclosure -Metal
• Cooling-Forced Cooling . Fan with  on off control
• Dimension (L*W*H)-155x85x95 MM
• Weight-800g. Approx.

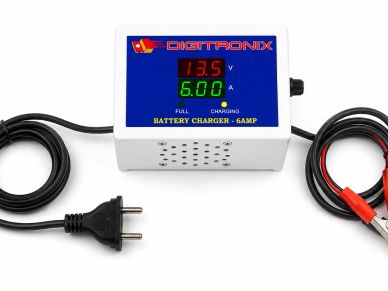

Model  -  MP6

• Battery Voltage - 12VDC
• Float Voltage - 13.5- 13.8VDC
• Boost Voltage - 14.4 - 14.7VDC   Rated Current - 6A
• Trickle   current - 100mA - 1 A   Current Range - 0 ~ 6A
• Rated Power - 90W
• Voltage Range - 190~265VAC   Efficiency - >96%
• I/P reverse   polarity - YES
• Working Temp. - 85DegC
• Enclosure  - ABS (Plastic)
• Cooling - Forced FAN
• Dimension   - (L*W*H) 110x78x62 MM   Weight - 320g. Approx.
• Display - Voltage / Current
• LEDS - FULL / CHARGING

PRICE  -  1280.00 ONLY

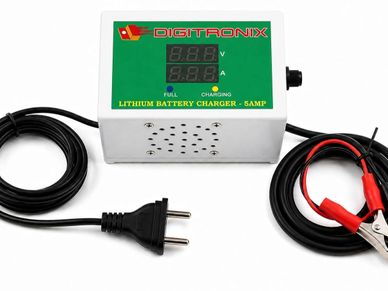

Model  -  LiFePo4-5Amp

• Battery Voltage - 12.8VDC
• Charging - 14.6VDC
• Rated Current - 5A
• Trickle   current - 100mA - 1 A   Current Range - 0 ~ 5A
• Rated Power - 85W
• Voltage Range - 190~265VAC   Efficiency - >96%
• I/P reverse   polarity - YES
• Working Temp. - 85DegC
• Enclosure  - ABS (Plastic)
• Cooling - Forced FAN
• Dimension   - (L*W*H) 110x78x62 MM   Weight - 320g. Approx.
• Display - Voltage / Current
• LEDS - FULL / CHARGING

PRICE  -  1280.00 ONLY
